TRS Corrugate Specification Detail - Downloadable Files

  • These details are generally in accordance with E2/AS1 and or the NZ metal roof & wall cladding code of practice.

  • The building designer/ Architect is ultimately responsible for details to meet the NZ Building Code & E2/AS1.

  • For Further information please contact your nearest Roofing Store.

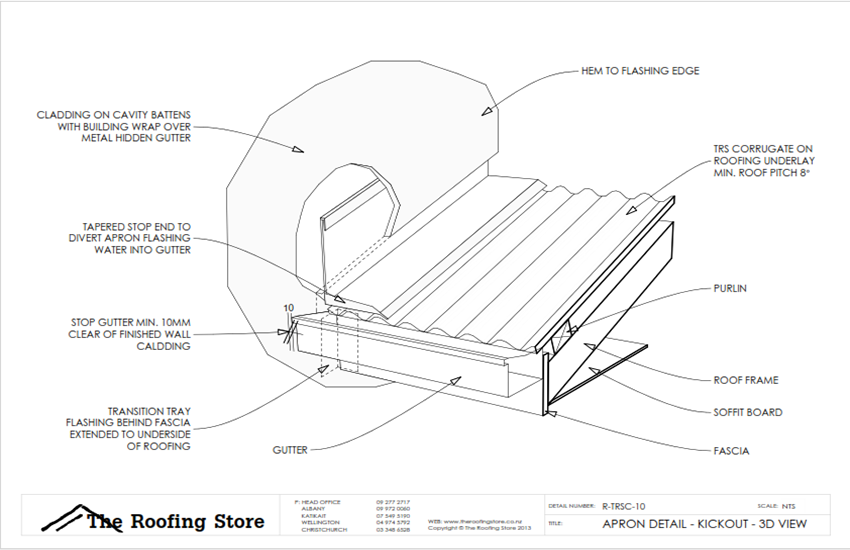

Corrugate - Apron Kickout
Detail


Click to download and view in:
DWG | DXF | PDF | PNG

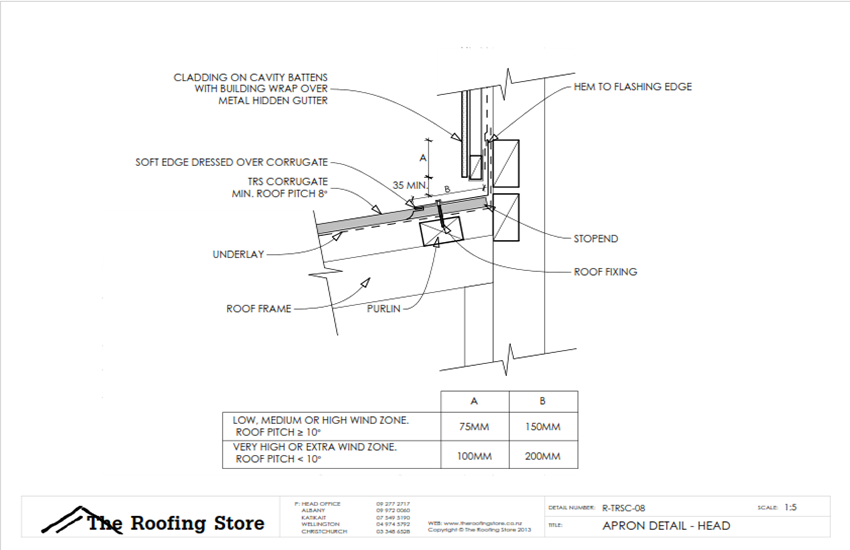

Corrugate - Apron Head
Detail


Click to download and view in:
DWG | DXF | PDF | PNG

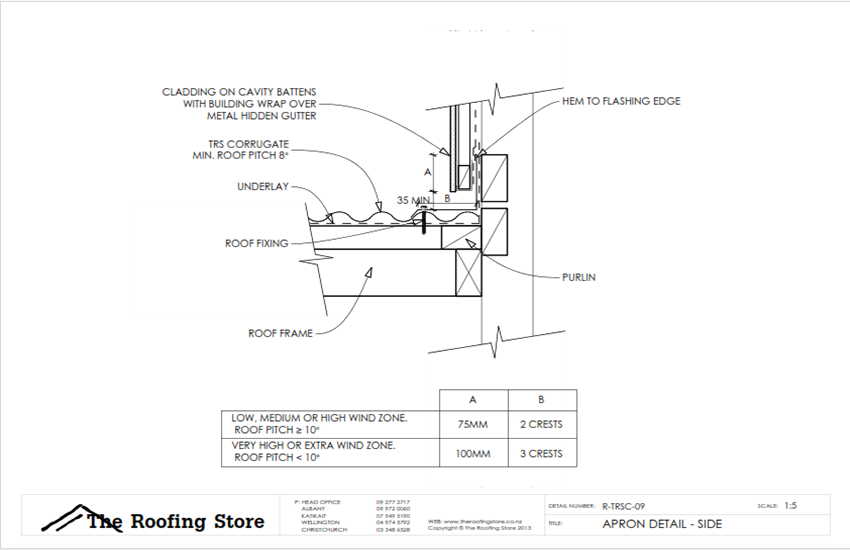

Corrugate - Apron Side
Detail


Click to download and view in:
DWG | DXF | PDF | PNG

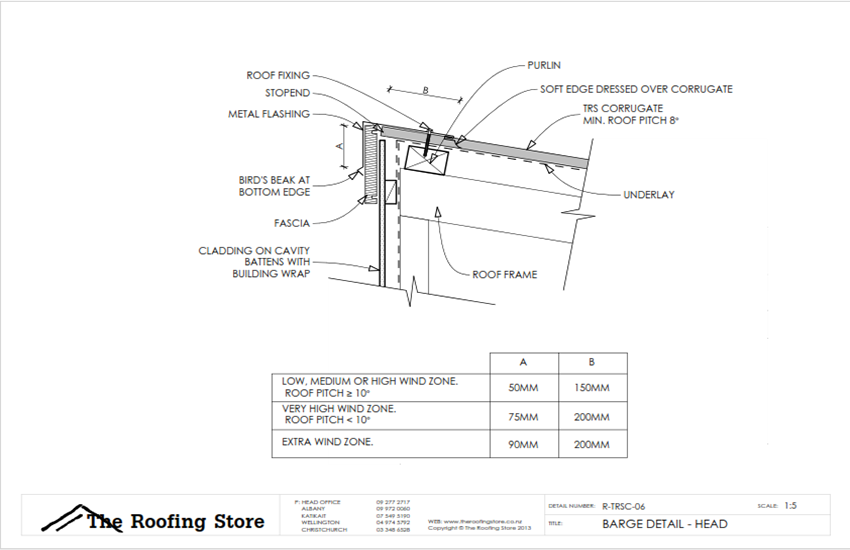

Corrugate - Barge Head
Detail

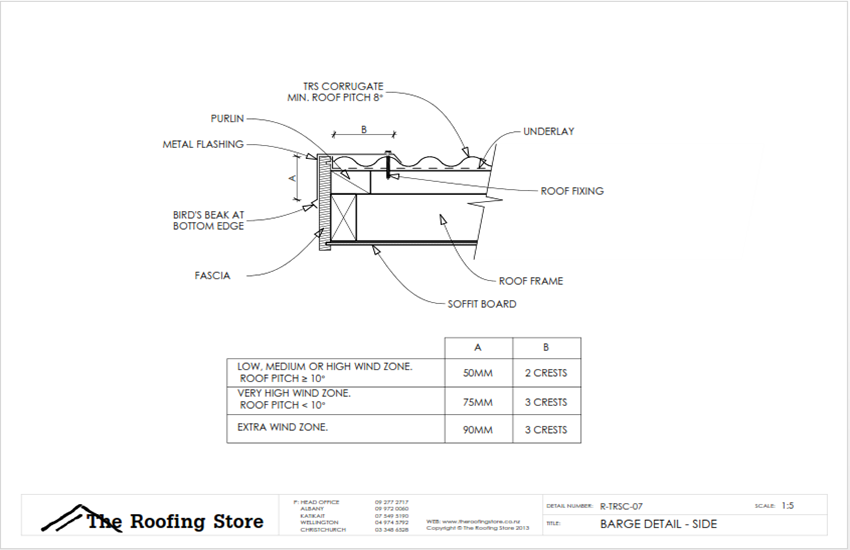

Corrugate - Barge Side
Detail

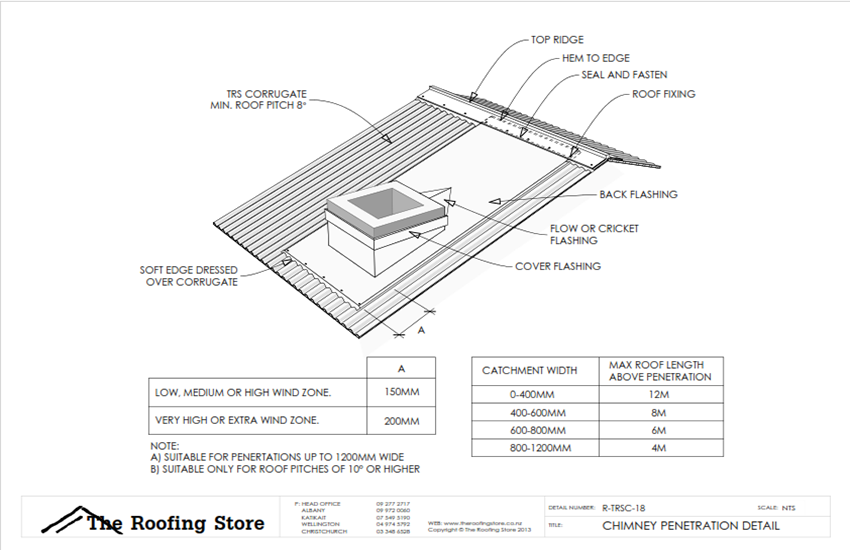

Corrugate - Chimney
Penetration Detail


Click to download and view in:
DWG | DXF | PDF | PNG

Click to download and view in:
DWG | DXF | PDF | PNG

Click to download and view in:
DWG | DXF | PDF | PNG



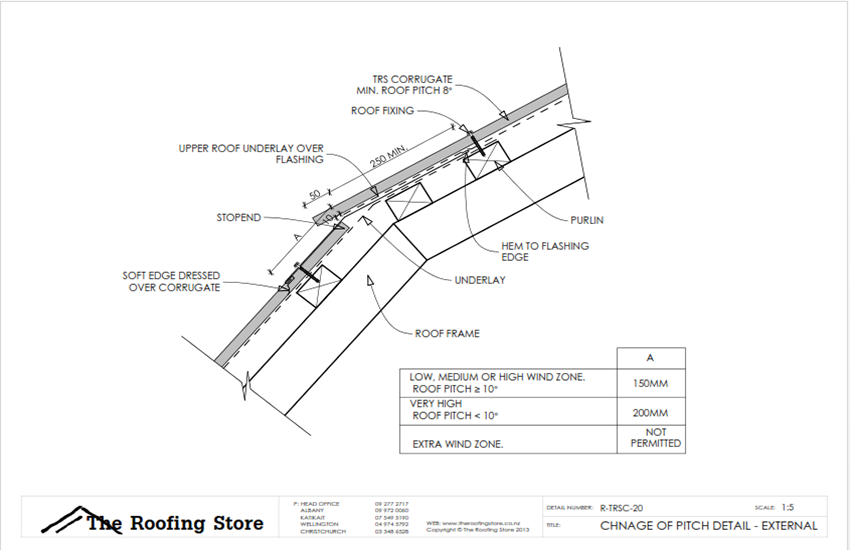

Corrugate - Change of
pitch external detail


Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Change of
pitch internal detail


Click to download and view in:
DWG | DXF | PDF | PNG

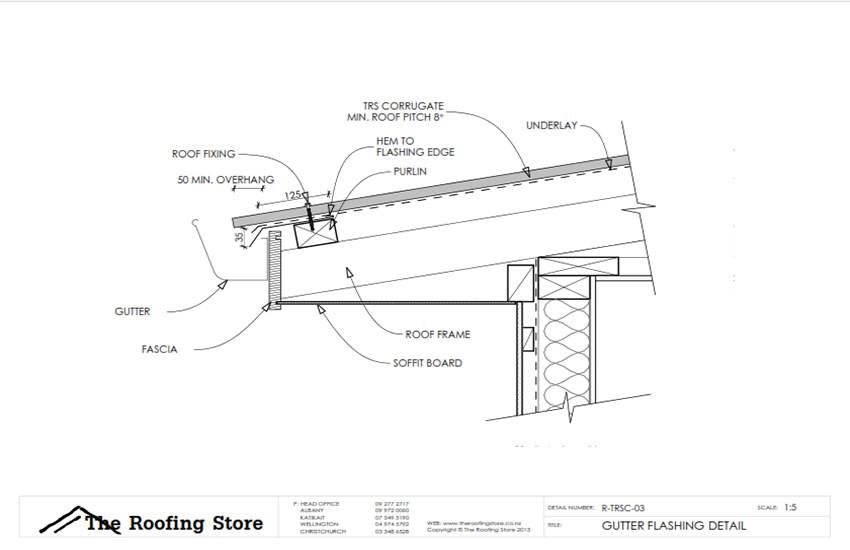

Corrugate - Gutter
flashing detail


Click to download and view in:
DWG | DXF | PDF | PNG

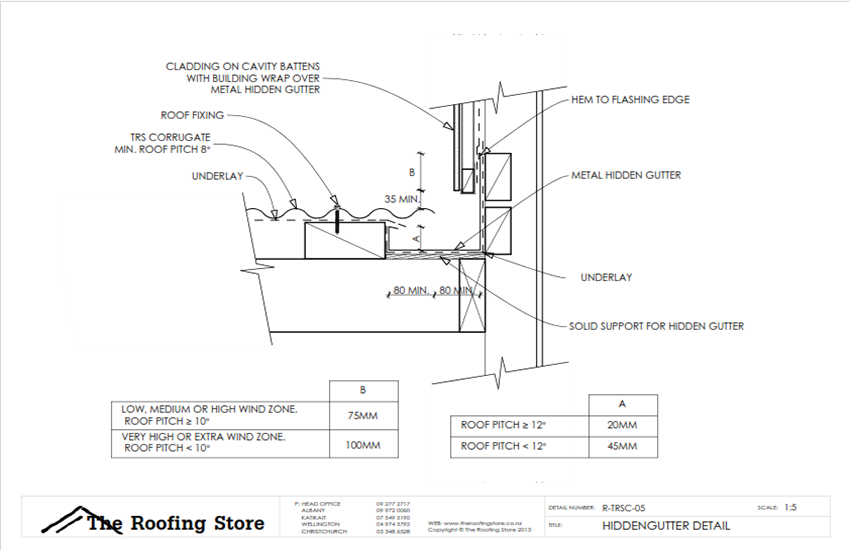

Corrugate - Hidden
gutter detail


Click to download and view in:
DWG | DXF | PDF | PNG

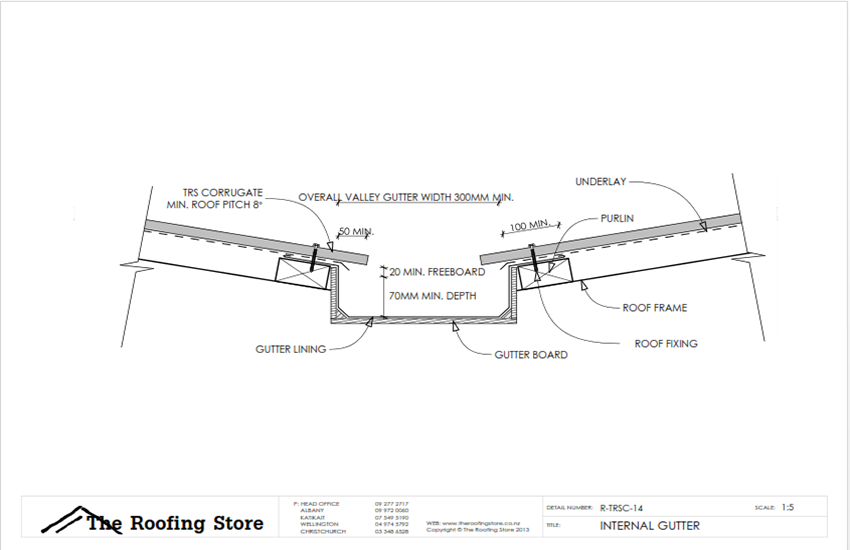

Corrugate - Internal
Gutter


Click to download and view in:
DWG | DXF | PDF | PNG

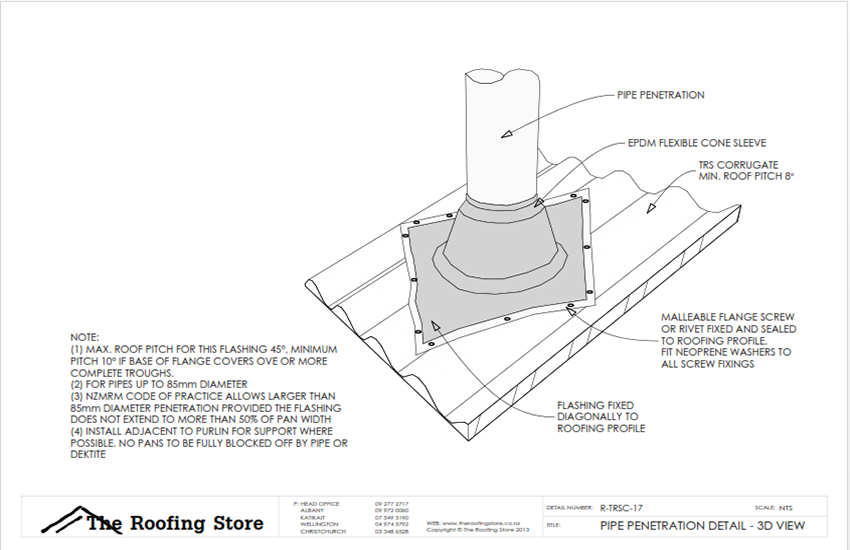

Corrugate - Pipe
Penetration Detail


Click to download and view in:
DWG | DXF | PDF | PNG

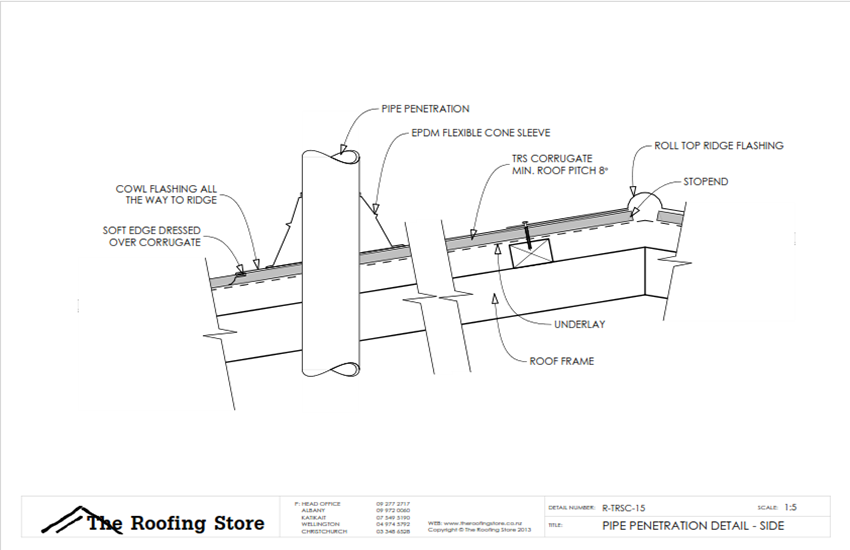

Corrugate - Pipe Penetration
Side Detail


Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Pipe Penetration Detail Sectional


Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Top Ridge
Roll top detail


Click to download and view in:
DWG | DXF | PDF | PNG



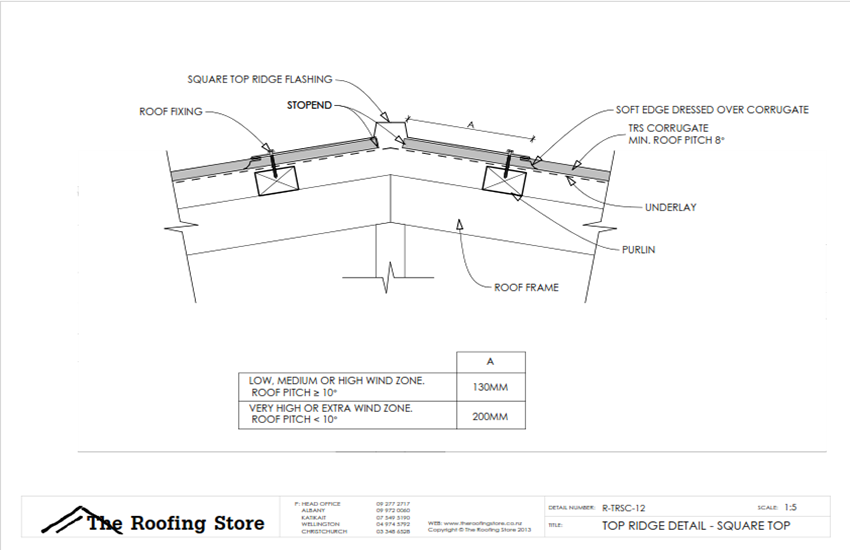

Corrugate - Top Ridge
square top detail


Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Top ridge
hip flashing detail


Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Typical roof
layout exposed rafters


Click to download and view in:
DWG | DXF | PDF | PNG



Corrugate - Typical roof
layout


Click to download and view in:
DWG | DXF | PDF | PNG

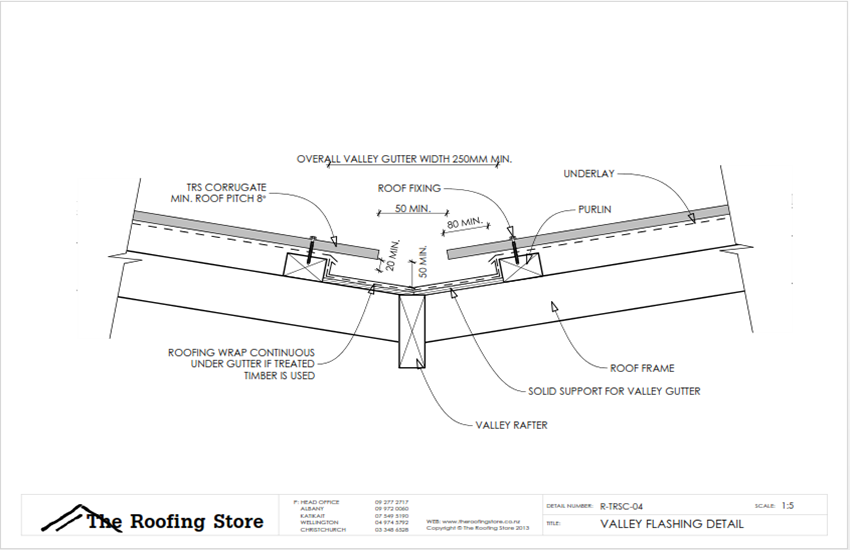

Corrugate - Valley flashing
detail


Click to download and view in:
DWG | DXF | PDF | PNG
