TRS Super Seam Specification Detail - Downloadable Files

  • These details are generally in accordance with E2/AS1 and or the NZ metal roof & wall cladding code of practice.

  • The building designer/ Architect is ultimately responsible for details to meet the NZ Building Code & E2/AS1.

  • For Further information please contact your nearest Roofing Store.



Super Seam - Window
door jamb


Click to download and view in:
DWG | DXF | PDF | RVT

Super Seam - joinery
sill flashing


Click to download and view in:
DWG | DXF | PDF | RVT

Super Seam - Joinery
Head Flashing


Click to download and view in:
DWG | DXF | PDF | RVT



Super Seam - Wall
Cladding Base

Super Seam - External
Corner

Super Seam - Internal
Corner


Click to download and view in:
DWG | DXF | PDF | RVT

Click to download and view in:
DWG | DXF | PDF | RVT

Click to download and view in:
DWG | DXF | PDF | RVT



Super Seam - Soffit
Flashing


Click to download and view in:
DWG | DXF | PDF | RVT

Super Seam - Vertical
Change of Cladding

Click to download and view in:
DWG | DXF | PDF | RVT

Super Seam - Apron
Details

Click to download and view in:
DWG | DXF | PDF | RVT

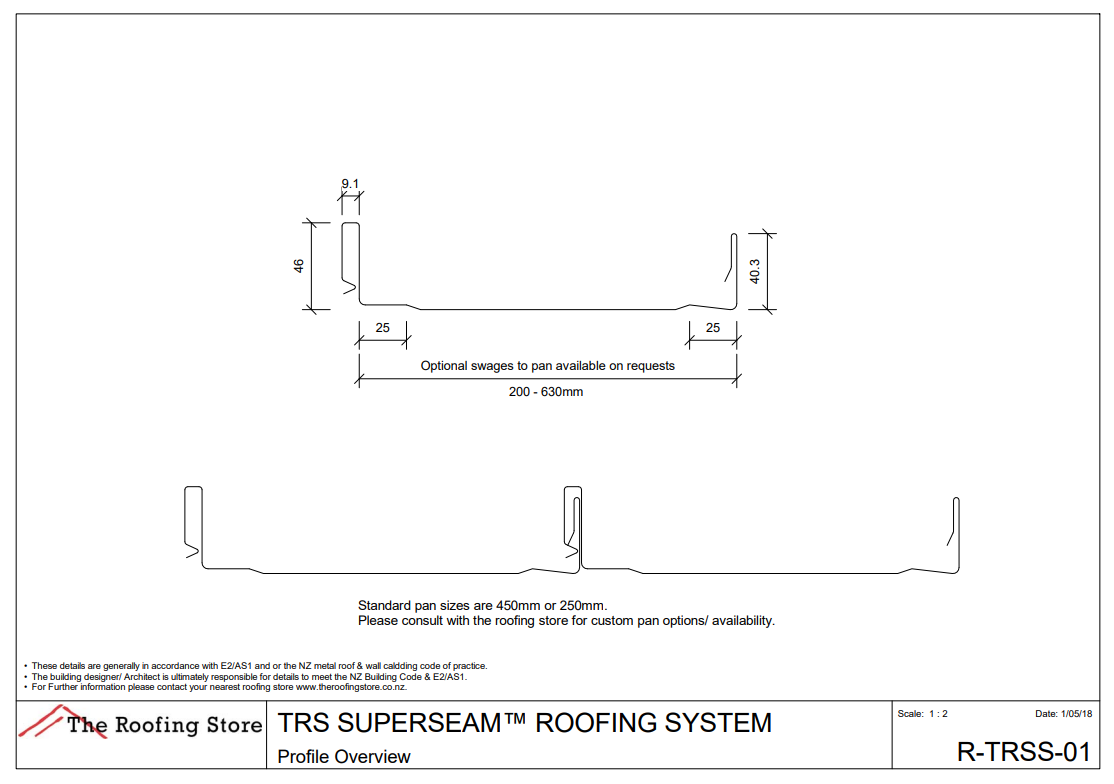

Super Seam - Profile
Overview


Click to download and view in:
DWG | DXF | PDF | RVT

Super Seam - Eaves
Flashing Gutter


Click to download and view in:
DWG | DXF | PDF | RVT

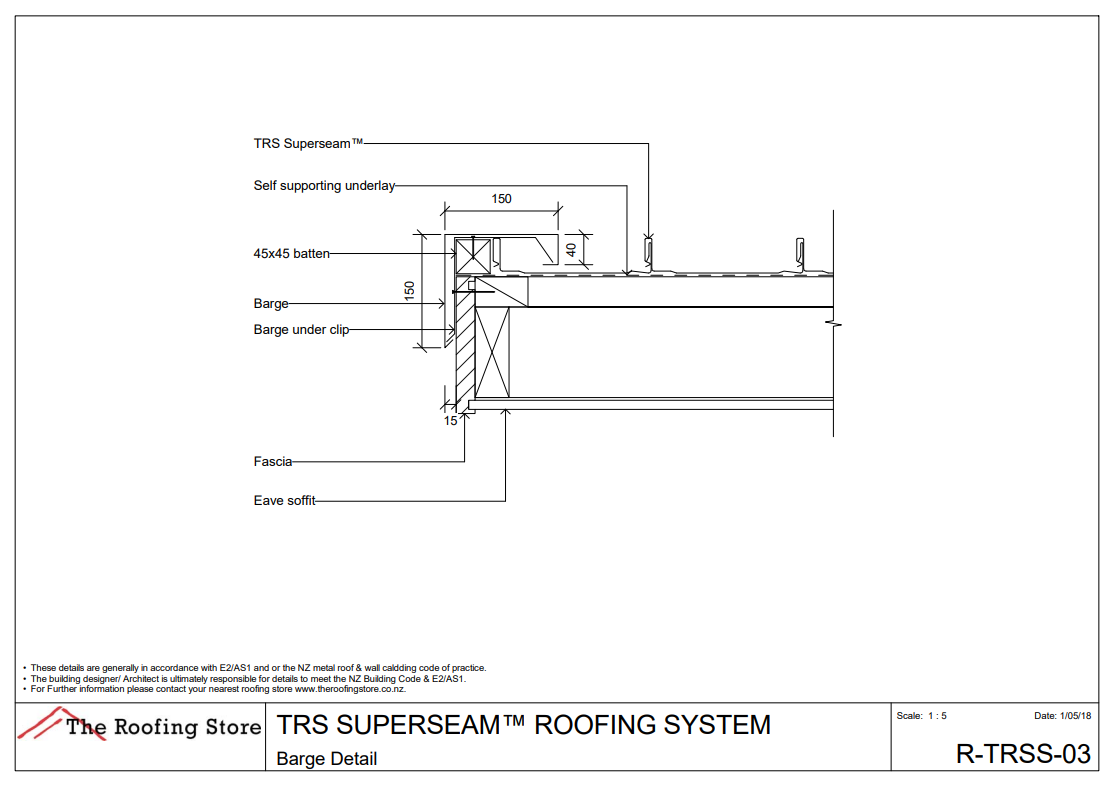

Super Seam - Barge
Details


Click to download and view in:
DWG | DXF | PDF | RVT

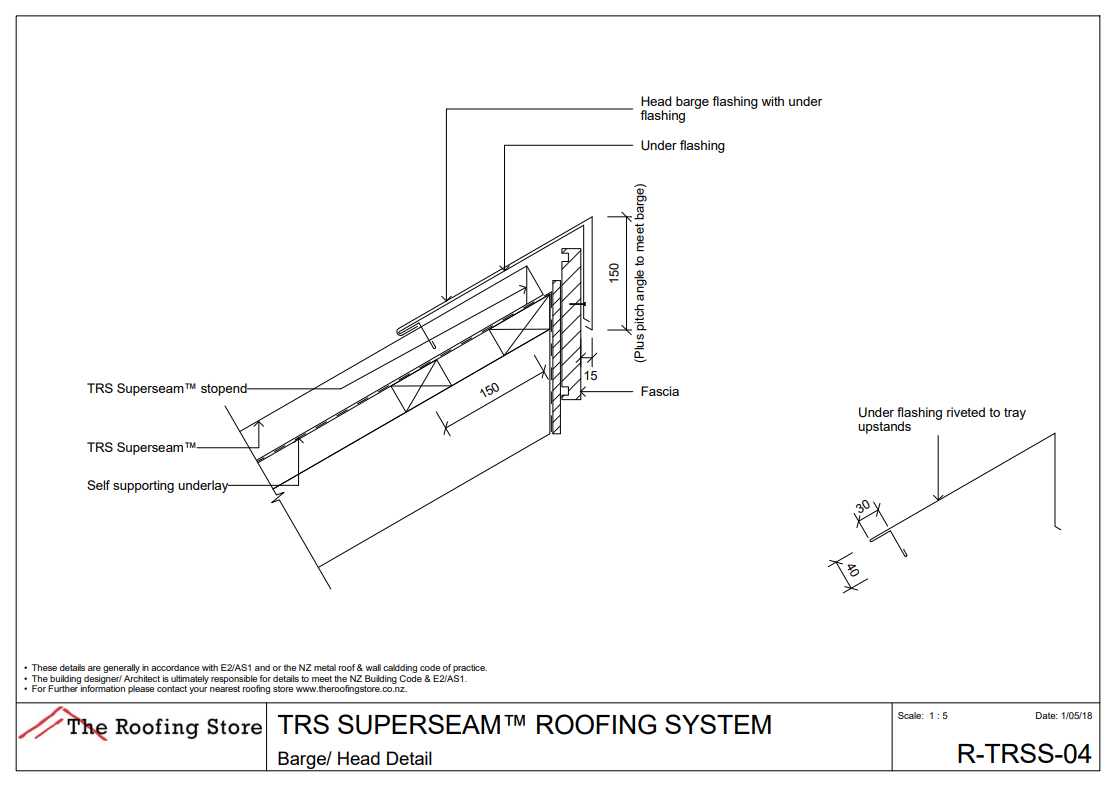

Super Seam - Barge head
details


Click to download and view in:
DWG | DXF | PDF | RVT

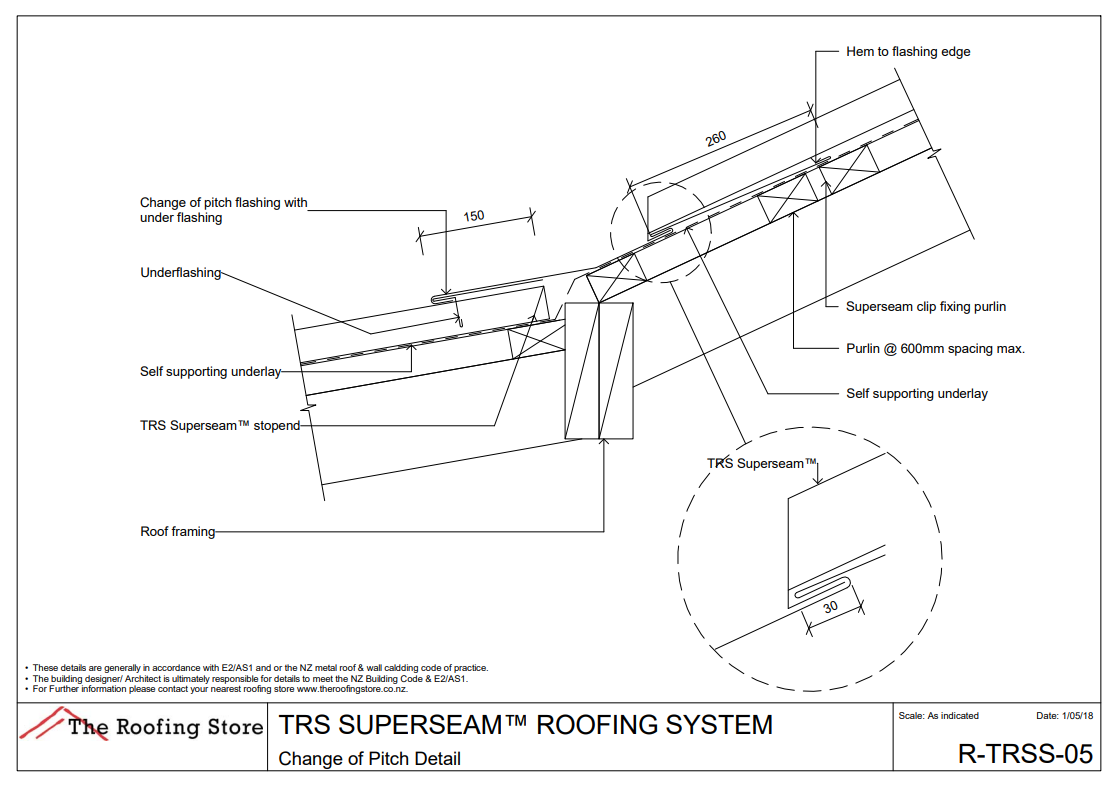

Super Seam - Change
of Pitch Details


Click to download and view in:
DWG | DXF | PDF | RVT

Super Seam - Ridge hip
details


Click to download and view in:
DWG | DXF | PDF | RVT



Super Seam - Standard
Valley Details


Click to download and view in:
DWG | DXF | PDF | RVT

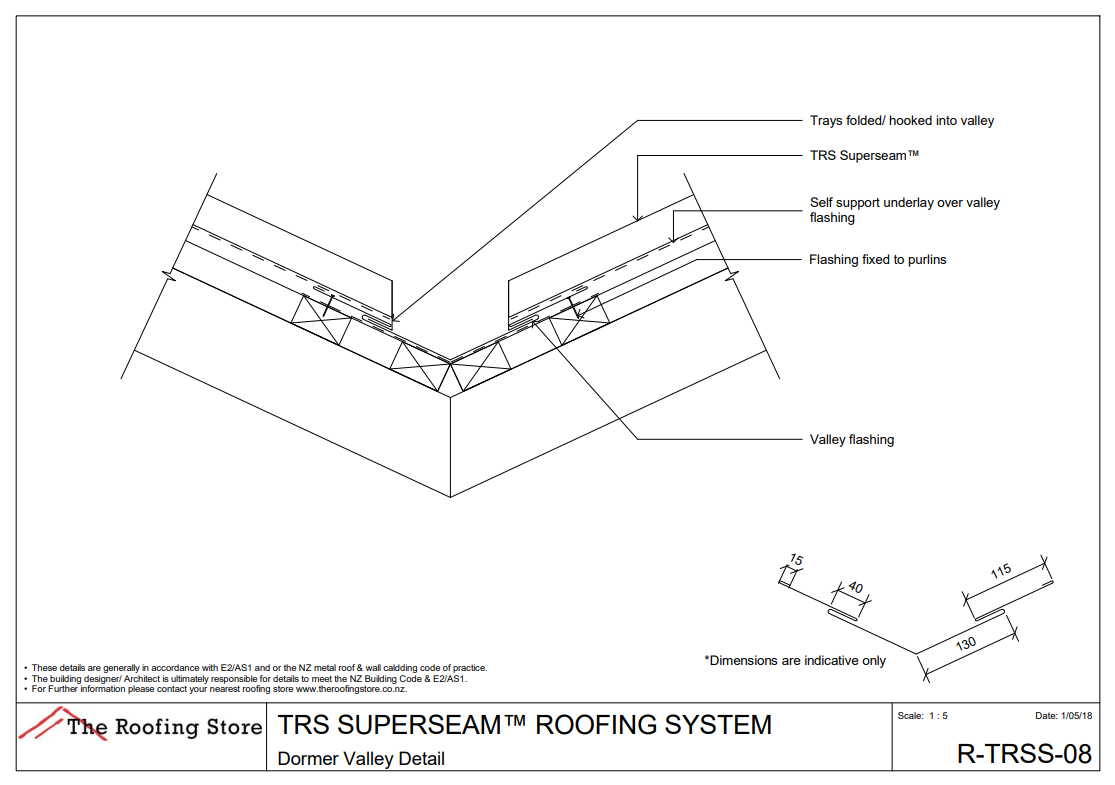

Super Seam - Dormer
Valley


Click to download and view in:
DWG | DXF | PDF | RVT

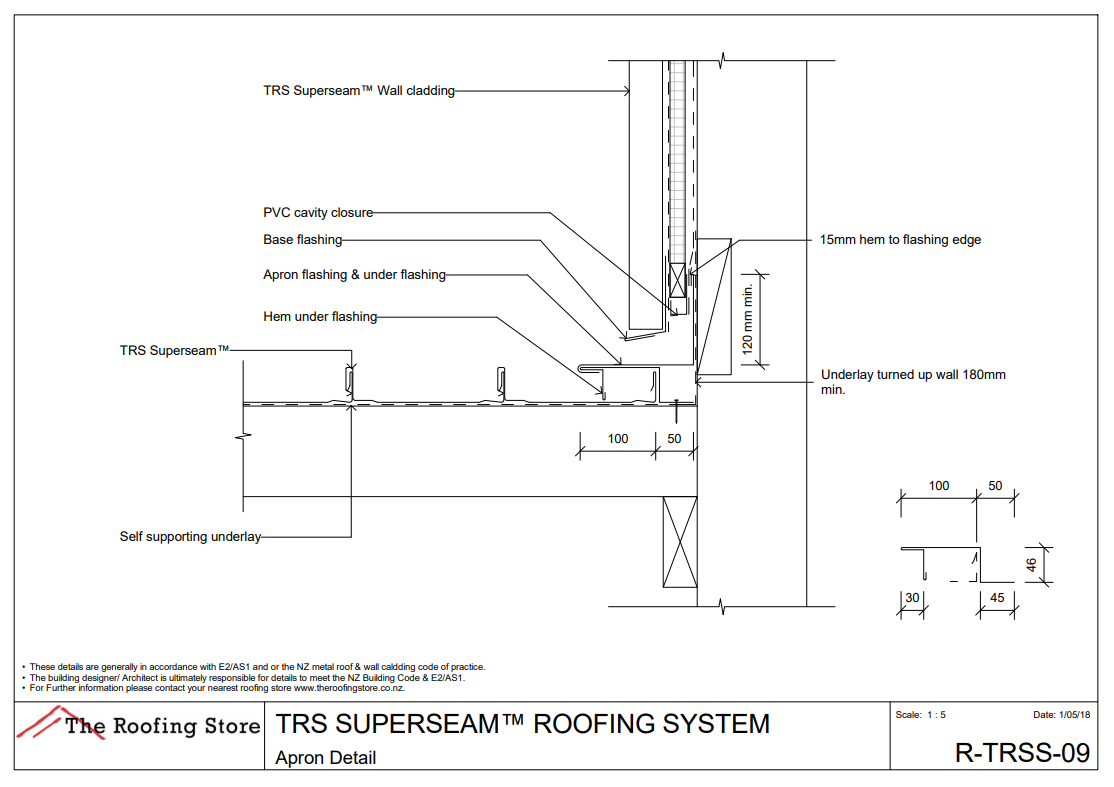

Super Seam - Apron
details


Click to download and view in:
DWG | DXF | PDF | RVT

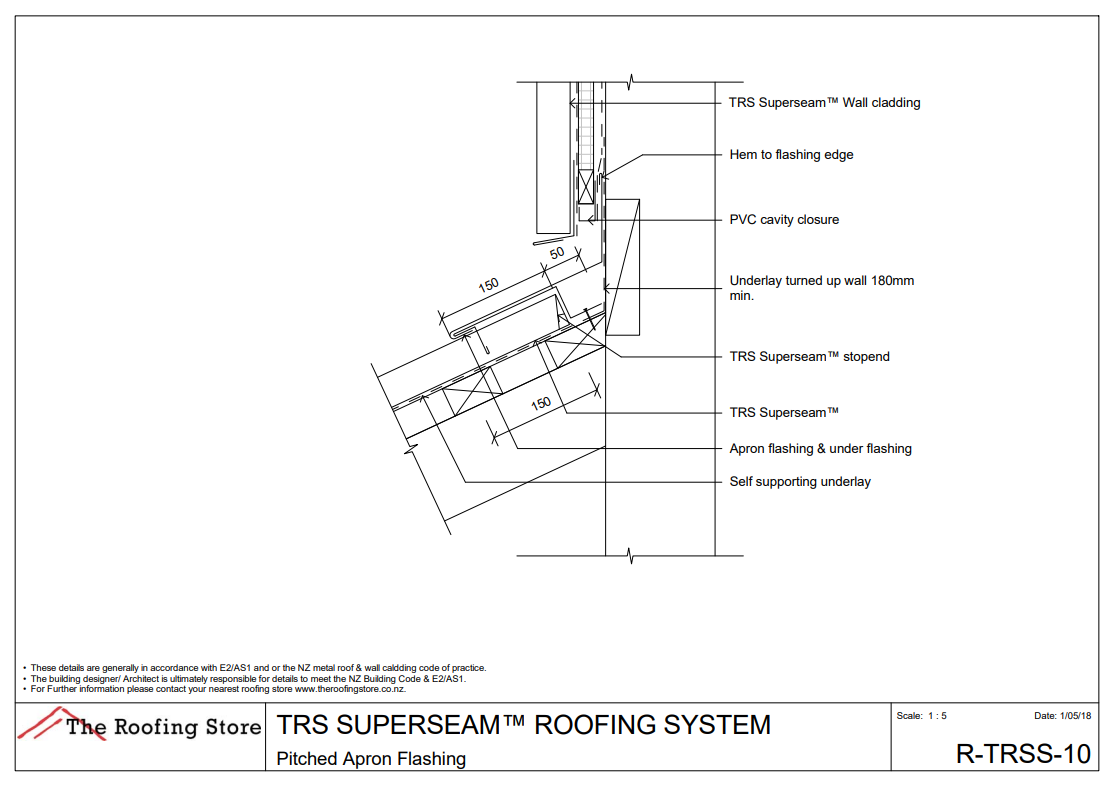

Super Seam - pitched
apron flashing


Click to download and view in:
DWG | DXF | PDF | RVT

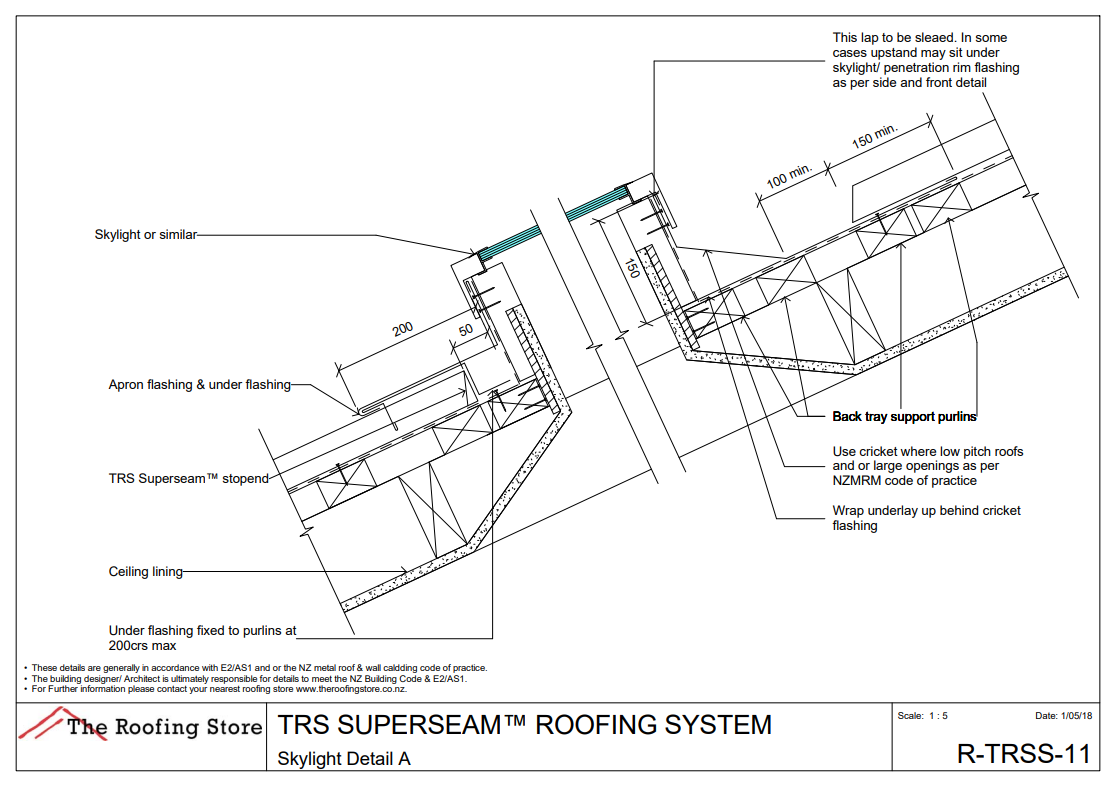

Super Seam - Skylight
detail A


Click to download and view in:
DWG | DXF | PDF | RVT

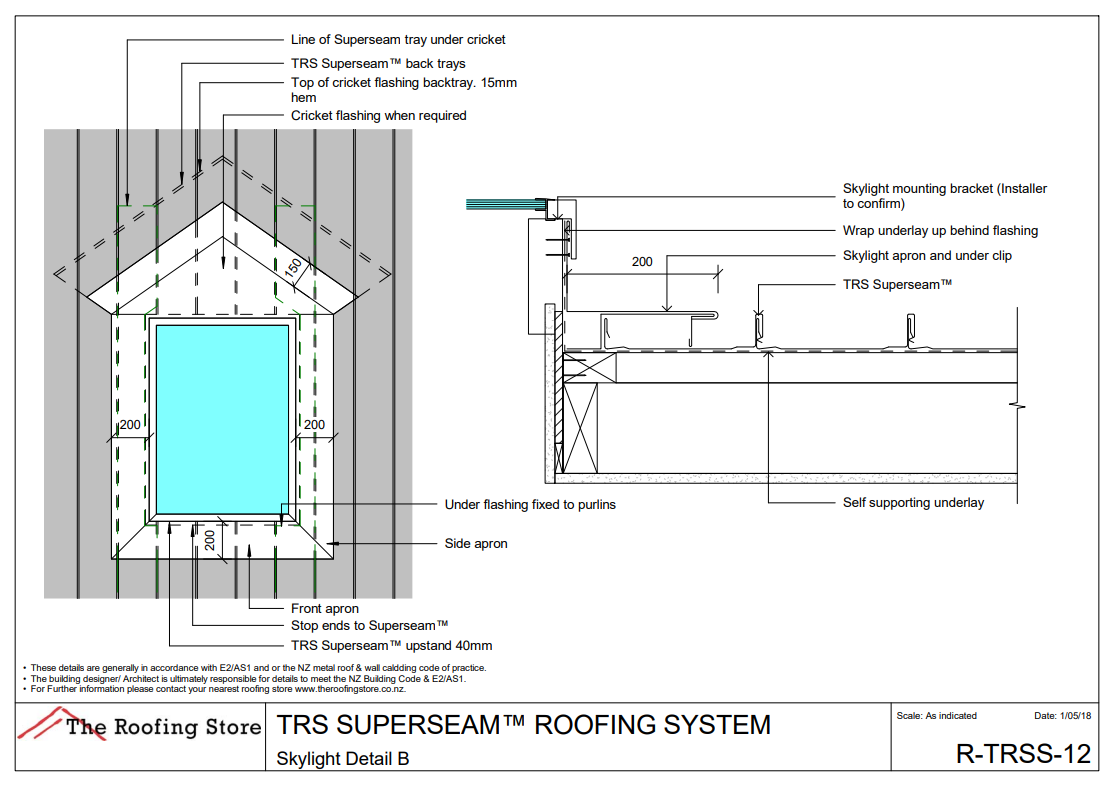

Super Seam - Skylight
detail b


Click to download and view in:
DWG | DXF | PDF | RVT
