TRS Corrugate

Steel Roofing and Cladding Profile

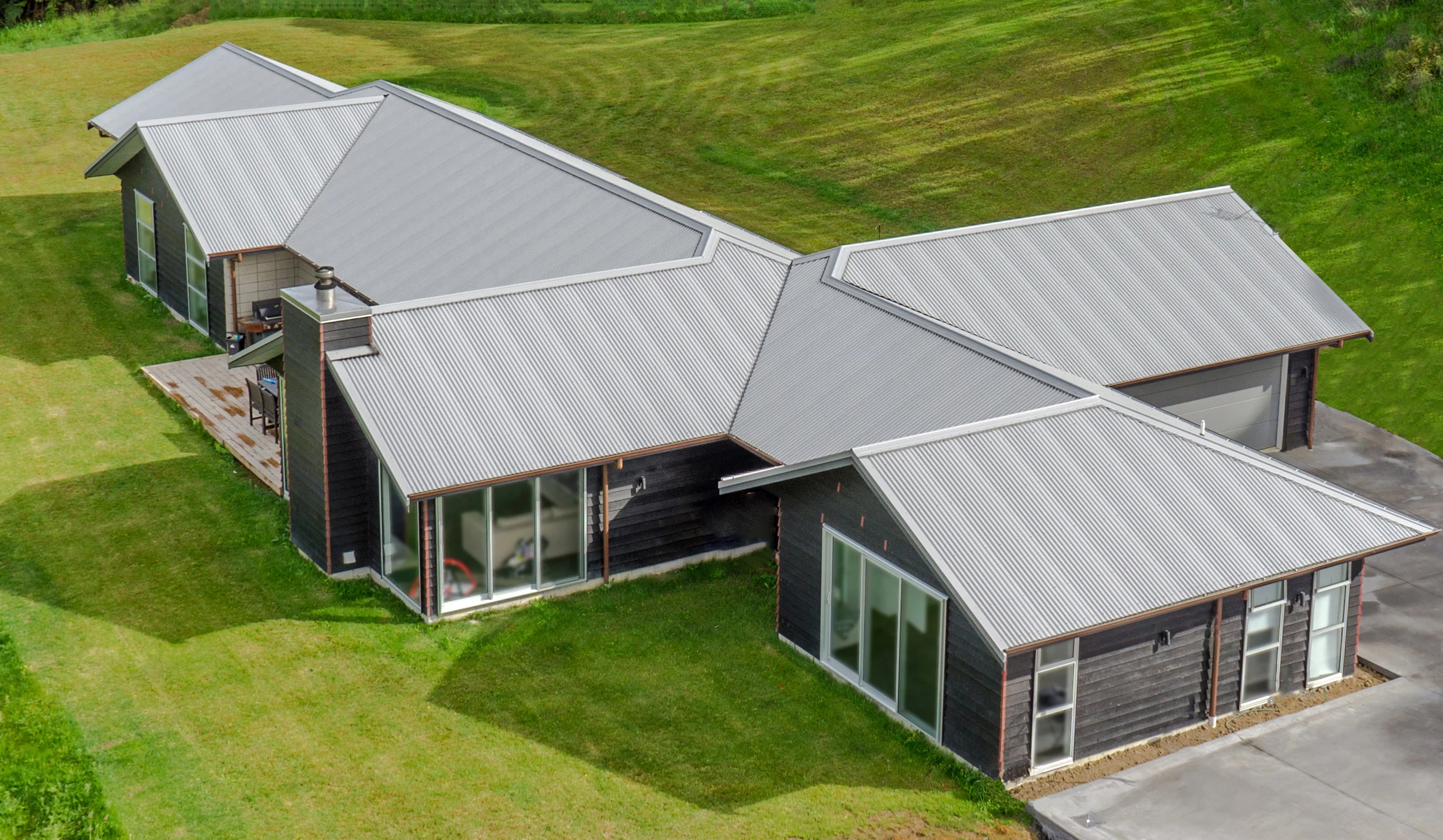

Corrugate Roof.jpg


TRS Corrugate longrun steel roofing

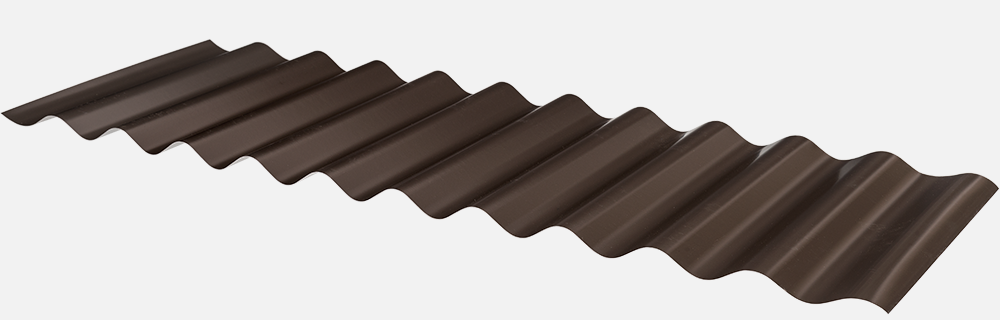

TRS Corrugate Longrun Steel Roofing - The Roofing Store.png



TRS Corrugate for roofing and cladding offers the timeless elegance and matchless adaptability of the traditional corrugated profile. G550 grade steel with minimum 0.40mm BMT and maximum 0.55 BMT gives more resilience to damage.

Specification at a glance

GENERAL

Minimum Roof Pitch: 8 Degrees

Effective Cover: 762mm

Max Unsupported Overhang: Contact The Roofing Store

SPANS

End Span 0.40/0.55 BMT: 700 mm/900 mm

Internal Span 0.40/0.55 BMT: 900 mm/1300 mm

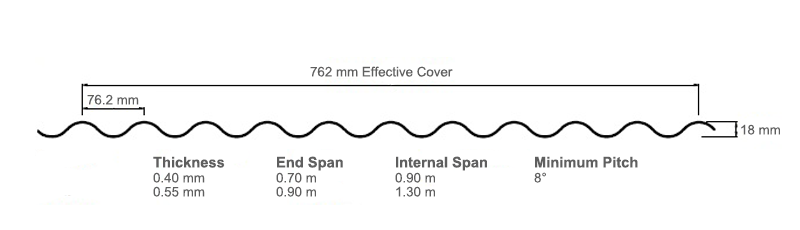

TRS corrugate longrun roofing profile diagram and size specifications.png

Roof fixings

LOW/MEDIUM WIND ZONE

Timber: class 4 12 x 55mm with neo washer and embossed washer

Steeltite: 12 x 65mm with neo washer and embossed washer

HIGH WIND ZONE

Timber: class 4 12 x 55mm with neo washer and embossed washer, approved profile’s metal washer and EPDM washer

WALL CLADDING FIXINGS

Cladding fixing on 20mm

H 3.1 Treated Battens

12 Gauge class 4 screws with neo washers, miss 2 pans, miss 3 pans every second on ends

See below for TRS Corrugate product specification information and downloadable files.



TRS Corrugate

Colour & finish options


TRS Red #f0163a.png

TRS Corrugate finish options




TRS Corrugate colour options

In Vitor+ and Vitor+ ZX



Please note: 0.40 available for all colours. * marked for 0.55 availability.




In Lux



Please note: All Lux is available in 0.55mm base metal thickness Grade G300 and is suitable for a wide range of architectural roofing, internal and external wall claddings, rainwater goods and general usage.

While all colours shown are as closely matched to the true colour as possible, they are not an exact match due to digital colour limitations. For a true colour match, please request a colour swatch from your local store.




TRS Corrugate

Specifications


TRS Red #f0163a.png

TRS Corrugate Specification Detail - Downloadable Files

  • These details are generally in accordance with E2/AS1 and or the NZ metal roof & wall cladding code of practice.

  • The building designer/ Architect is ultimately responsible for details to meet the NZ Building Code & E2/AS1.

  • For Further information please contact your nearest Roofing Store.



Corrugate - Apron Kickout
Detail

Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Apron Head
Detail

Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Apron Side
Detail

Click to download and view in:
DWG | DXF | PDF | PNG



Corrugate - Barge Head
Detail

Corrugate - Barge Side
Detail

Corrugate - Chimney
Penetration Detail

Click to download and view in:
DWG | DXF | PDF | PNG

Click to download and view in:
DWG | DXF | PDF | PNG

Click to download and view in:
DWG | DXF | PDF | PNG



Corrugate - Change of
pitch external detail

Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Change of
pitch internal detail

Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Gutter
flashing detail

Click to download and view in:
DWG | DXF | PDF | PNG



Corrugate - Hidden
gutter detail

Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Internal
Gutter

Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Pipe
Penetration Detail

Click to download and view in:
DWG | DXF | PDF | PNG



Corrugate - Pipe Penetration
Side Detail

Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Pipe Penetration Detail Sectional

Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Top Ridge
Roll top detail

Click to download and view in:
DWG | DXF | PDF | PNG



Corrugate - Top Ridge
square top detail

Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Top ridge
hip flashing detail

Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Typical roof
layout exposed rafters

Click to download and view in:
DWG | DXF | PDF | PNG



Corrugate - Typical roof
layout

Click to download and view in:
DWG | DXF | PDF | PNG

Corrugate - Valley flashing
detail

Click to download and view in:
DWG | DXF | PDF | PNG
