TRS Super Seam

Steel Roofing and Cladding Profile




TRS Super Seam longrun steel roofing & cladding


TRS Trough Longrun Superseam Architectural Steel Roofing - The Roofing Store.jpg

Super Seam is our latest tray system for roofing & cladding providing sleek lines and  wider pans giving off an elegant European look without the additional cost of a substrate thus reducing costs.  Purlin spacing to be at 600 centers max.

Super Seam is a wide tray roofing system roll formed in single length trays, hidden fixed to purling.  Trays  are  snapped  together  using the hidden clips and the specially designed over and under of the tray.

Super seam allows a much greater flexibility in design than other standard long run profiles. Tray sizes may vary depending on design requirements. Super seam is an ideal cladding for roof, façade, soffit and fascia areas. Using traditional European techniques Super seam will enhance the style or type of building. Because of super seams flexibility with complex designs and shapes it can be handled relatively with ease.

APPLICATION

Super seam is ideal for use on new homes, reroofing, and existing buildings where a stylish versatile cladding system is desirable.

Areas of application could include:

  • Roof

  • Facade

  • Turrets

  • Domes

  • Soffits

  • Fascias

Super Seam is also ideal for creating features as:

  • Chimney cladding

  • Flashings

  • Interior feature walls

  • Pillar and column surrounds

  • Gable and infill

  • Gothic style homes

  • Entrance canopies

SUPER SEAM DIMENSIONS

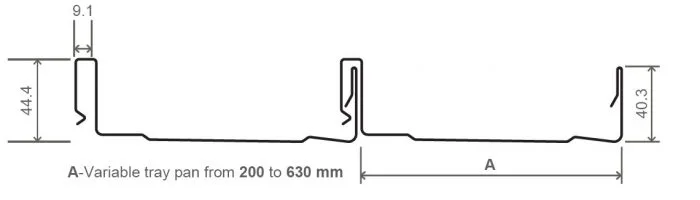

TRS trough longrun superseam architectural roofing profile diagram and size specifications.jpg

Suitable for wall cladding and roofs with a minimum pitch of 3°

Variable pan from 200 to 630 mm

Seam height – 45mm overall Height

Can be manufactured in full range of materials:

  • Copper (Plywood Substrate required)

  • Stainless Steel

  • Titanium Zinc

  • Aluminum 0.80g

  • Vitor+, Vitor+ ZX or Lux – 0.55g Steel

Minimum pitches are dependent on factors like tray lengths, local conditions like snow zones, wind and rainfall intensities. Please consult with us for recommendations. A maximum tray length depends on the material used, roof pitch and local conditions.

PROFILE INFORMATION

Super seam is available in a variety of widths. We can offer 250 & 450 Wide pans as our most cost effective widths for manufacture and installation.  Please consult with us for alternative tray sizing.

See below for TRS Super Seam product specification information and downloadable files.



TRS Super Seam

Colour & finish options


TRS Red #f0163a.png

TRS Super Seam finish options




TRS Super Seam colour options

In Vitor+ and Vitor+ ZX



Please note: 0.40 available for all colours. * marked for 0.55 availability.




In Lux



Please note: All Lux is available in 0.55mm base metal thickness Grade G300 and is suitable for a wide range of architectural roofing, internal and external wall claddings, rainwater goods and general usage.

While all colours shown are as closely matched to the true colour as possible, they are not an exact match due to digital colour limitations. For a true colour match, please request a colour swatch from your local store.




TRS Super Seam

Specifications


TRS Red #f0163a.png

TRS Super Seam Specification Detail - Downloadable Files

  • These details are generally in accordance with E2/AS1 and or the NZ metal roof & wall cladding code of practice.

  • The building designer/ Architect is ultimately responsible for details to meet the NZ Building Code & E2/AS1.

  • For Further information please contact your nearest Roofing Store.
