TRS 5

Steel Roofing and Cladding Profile

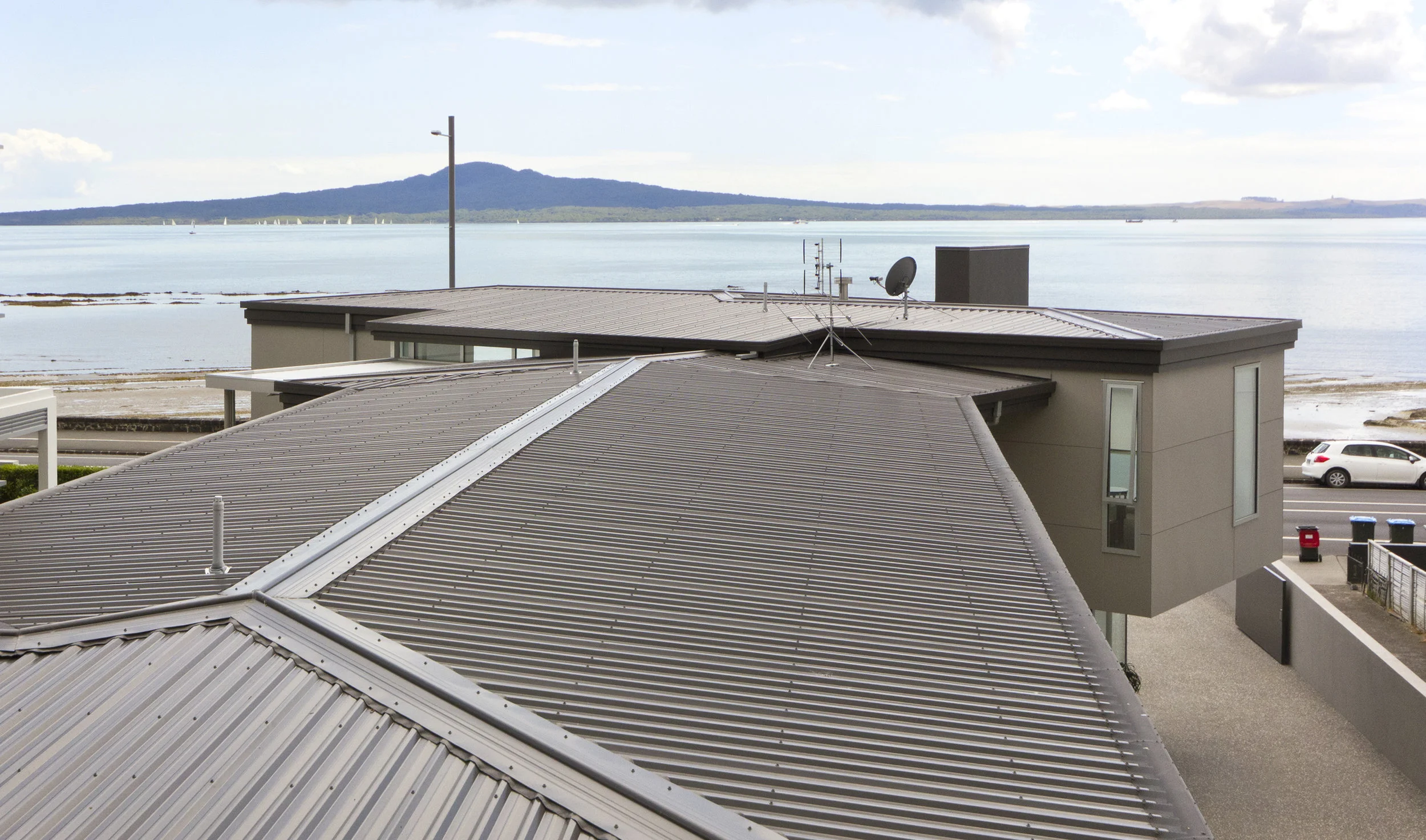

TRS 5.jpg


TRS 5 longrun steel roofing

TRS5 Longrun Steel Roofing - The Roofing Store.png



TRS 5 profile is designed for residential and industrial roofing and cladding. G550 grade steel with minimum 0.40mm BMT and maximum 0.55BMT gives more resilience to damage.

Specification at a glance

GENERAL

Effective Cover: 765mm
Minimum Roof Pitch: 3 Degrees
Max. Unsupported Overhang: Contact The Roofing Store

SPANS

End Span 0.40/0.55 BMT: 1100mm/1500mm
Internal Span 0.40/0.55 BMT: 1600mm/2200mm
Specific Design Wind Zone: Contact The Roofing Store

TRS5 longrun roofing profile diagram and size specifications.png

Roof fixings

LOW/MEDIUM WIND ZONE

Timber: class 4 12 x 65mm with neo washer and embossed washer

Steeltite: 12 x 55mm with neo washer and embossed washer

HIGH WIND ZONE

Timber: class 4 12 x 65mm with neo washer and embossed washer, approved profile washers with EPDM

Steeltite: 12 x 55mm with neo washer and embossed washer, approved profile washers with EPDM

WALL CLADDING FIXINGS

Cladding fixing on 20mm:

Timber Battens (please ensure compatibility as some treatments may cause a reaction ) Every pan with 12 gauge class 4 screws with neo washers

See below for TRS 5 product specification information and downloadable files.



TRS 5

Colour & finish options


TRS Red #f0163a.png

TRS 5 finish options




TRS 5 colour options

In Vitor+ and Vitor+ ZX



Please note: 0.40 available for all colours. * marked for 0.55 availability.




In Lux



Please note: All Lux is available in 0.55mm base metal thickness Grade G300 and is suitable for a wide range of architectural roofing, internal and external wall claddings, rainwater goods and general usage.

While all colours shown are as closely matched to the true colour as possible, they are not an exact match due to digital colour limitations. For a true colour match, please request a colour swatch from your local store.




TRS 5

Specifications


TRS Red #f0163a.png

TRS 5 Specification Detail - Downloadable Files

  • These details are generally in accordance with E2/AS1 and or the NZ metal roof & wall cladding code of practice.

  • The building designer/ Architect is ultimately responsible for details to meet the NZ Building Code & E2/AS1.

  • For Further information please contact your nearest Roofing Store.



TRS 5 - Apron Kickout
Detail

Click to download and view in:
DWG | DXF | PDF | PNG

TRS 5 - Apron Head
Detail

Click to download and view in:
DWG | DXF | PDF | PNG

TRS 5 - Apron Side
Detail

Click to download and view in:
DWG | DXF | PDF | PNG



TRS 5 - Barge Head
Detail

TRS 5 - Barge Side
Detail

TRS 5 - Chimney Penetration
Detail

Click to download and view in:
DWG | DXF | PDF | PNG

Click to download and view in:
DWG | DXF | PDF | PNG

Click to download and view in:
DWG | DXF | PDF | PNG



TRS 5 - Change of pitch
external detail

Click to download and view in:
DWG | DXF | PDF | PNG

TRS 5 - Change of pitch
internal detail

Click to download and view in:
DWG | DXF | PDF | PNG

TRS 5 - Gutter flashing
detail

Click to download and view in:
DWG | DXF | PDF | PNG



TRS 5 - Hidden gutter
detail

Click to download and view in:
DWG | DXF | PDF | PNG

TRS 5 - Internal
Gutter

Click to download and view in:
DWG | DXF | PDF | PNG

TRS 5 - Pipe Penetration
Detail

Click to download and view in:
DWG | DXF | PDF | PNG



TRS 5 - Pipe Penetration
Side Detail

Click to download and view in:
DWG | DXF | PDF | PNG

TRS 5 - Pipe Penetration
Detail Sectional

Click to download and view in:
DWG | DXF | PDF | PNG

TRS 5 - Top Ridge Roll
top detail

Click to download and view in:
DWG | DXF | PDF | PNG



TRS 5 - Top Ridge square
top detail

Click to download and view in:
DWG | DXF | PDF | PNG

TRS 5 - Top ridge hip
flashing detail

Click to download and view in:
DWG | DXF | PDF | PNG

TRS 5 - Typical roof layout
exposed rafters

Click to download and view in:
DWG | DXF | PDF | PNG



TRS 5 - Typical roof
layout

Click to download and view in:
DWG | DXF | PDF | PNG

TRS 5 - Valley flashing
detail

Click to download and view in:
DWG | DXF | PDF | PNG
