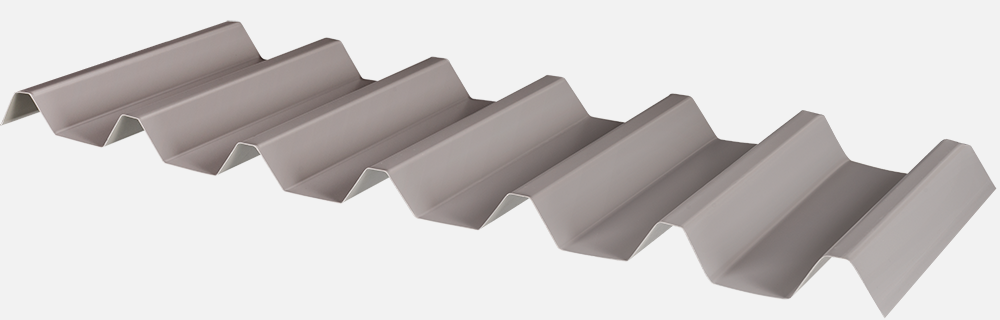

TRS 7 longrun steel roofing
TRS 7 profile is designed for commercial and industrial roofing. The profile is suitable for low pitch roofing as well as curved roofing. Commercial and industrial roofing G550 grade steel with minimum 0.55 BMT gives more resilience to damage. Available in Duralume, Sandstone Grey, Gull Grey, and Titania White.
Specification at a glance
Minimum Roof Pitch: 3 Degree
Effective Cover: 890 mm
Overall Width: 934 mm
End Span 0.40/0.55 BMT: 1400 mm/1100 mm
Internal Span G550/0.55 BMT: 1700 mm/2700 mm
Class 4 14 x 75mm with neo washer and embossed washer, approved profile’s metal washer and EDDM washer
Steel: 12 x 65mm with neo washer and embossed washer, approved profile’s metal washer and EDDM washer
Flashing up to 8 meters, Pipe flashings, Rivets, Underlays, Netting and Sealants, Translucent roofing to match
See below for TRS 7 product specification information and downloadable files.
Colour & finish options
TRS 7 finish options
TRS 7 colour options
In Vitor+ and Vitor+ ZX
Colours * marked for 0.55 availability.
Please note: All Lux is available in 0.55mm base metal thickness Grade G300 and is suitable for a wide range of architectural roofing, internal and external wall claddings, rainwater goods and general usage.
While all colours shown are as closely matched to the true colour as possible, they are not an exact match due to digital colour limitations. For a true colour match, please request a colour swatch from your local store.
TRS 7 Specification Detail - Downloadable Files
These details are generally in accordance with E2/AS1 and or the NZ metal roof & wall cladding code of practice.
The building designer/ Architect is ultimately responsible for details to meet the NZ Building Code & E2/AS1.
For Further information please contact your nearest Roofing Store.
