TRS 7 Specification Detail - Downloadable Files

  • These details are generally in accordance with E2/AS1 and or the NZ metal roof & wall cladding code of practice.

  • The building designer/ Architect is ultimately responsible for details to meet the NZ Building Code & E2/AS1.

  • For Further information please contact your nearest Roofing Store.

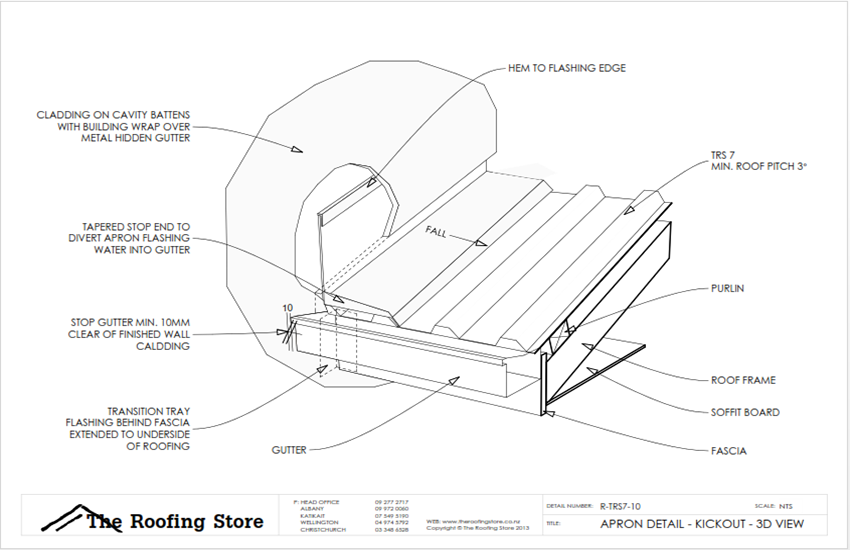

TRS 7 - Apron Kickout
Detail


Click to download and view in:
DWG | DXF | PDF | PNG

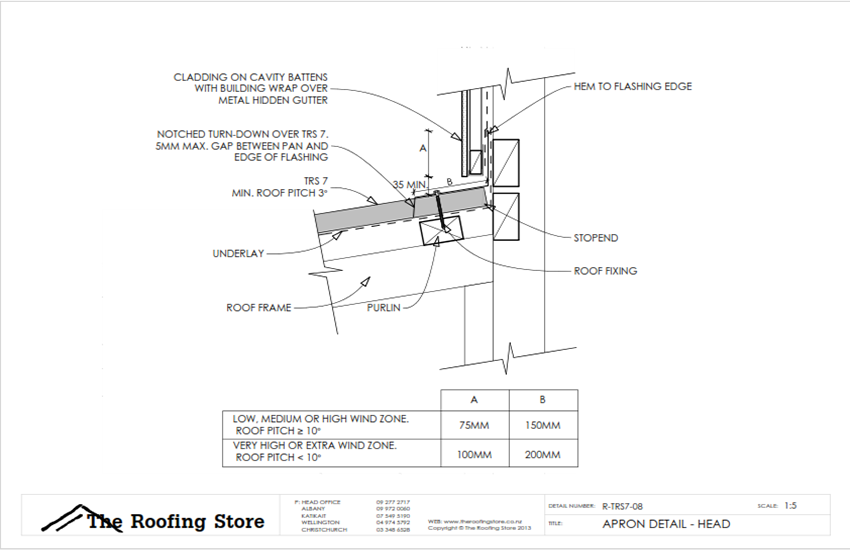

TRS 7 - Apron Head
Detail


Click to download and view in:
DWG | DXF | PDF | PNG

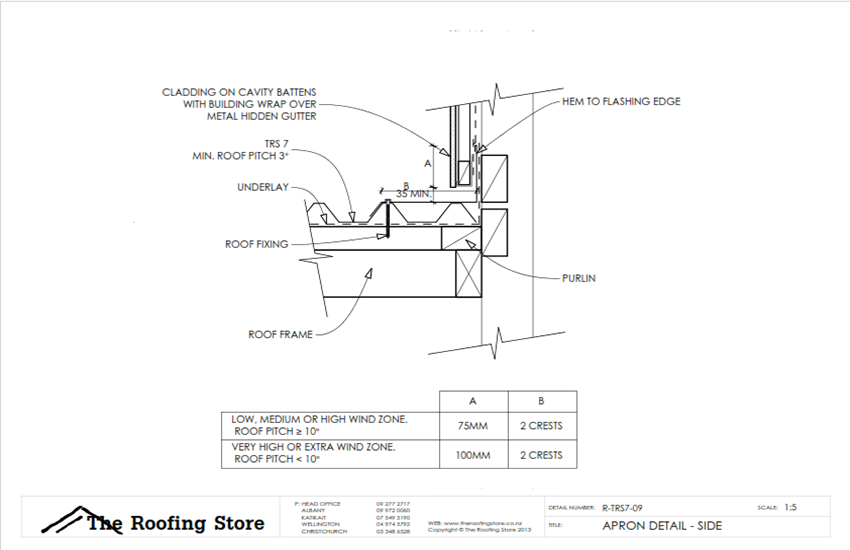

TRS 7 - Apron Side
Detail


Click to download and view in:
DWG | DXF | PDF | PNG



TRS 7 - Barge Head
Detail

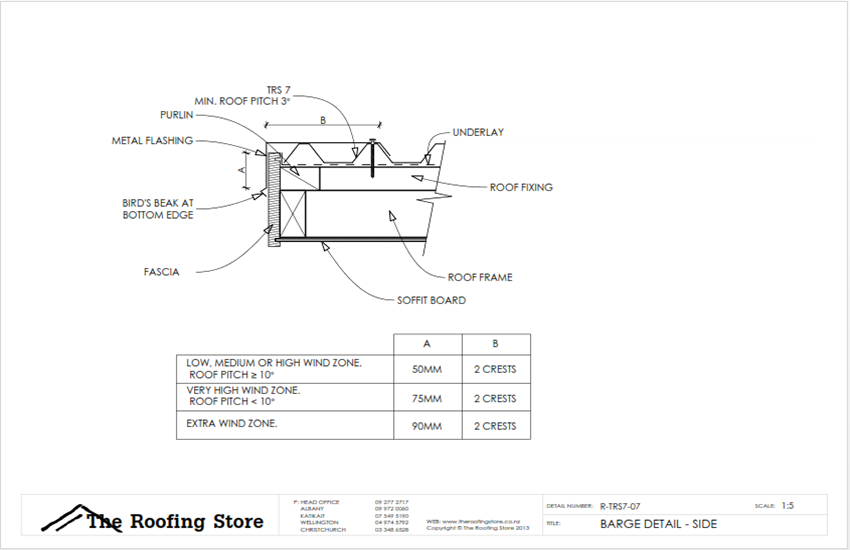

TRS 7 - Barge Side
Detail

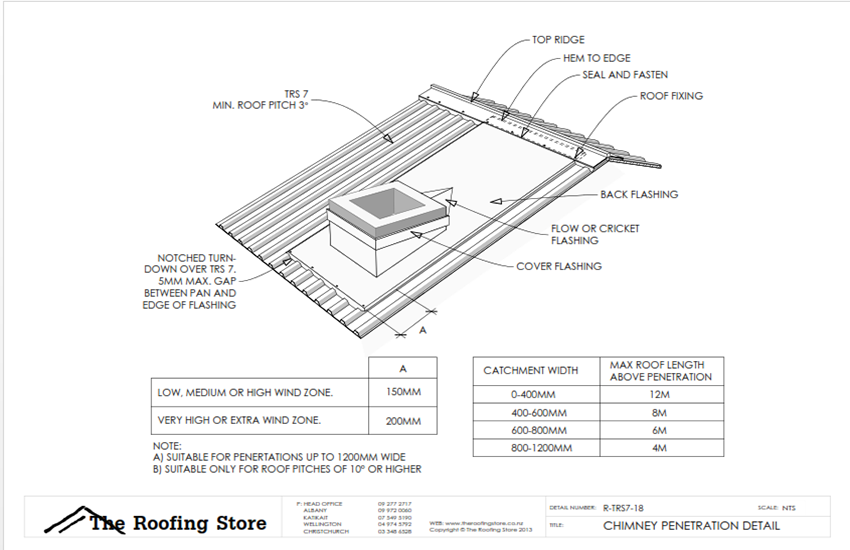

TRS 7 - Chimney Penetration
Detail


Click to download and view in:
DWG | DXF | PDF | PNG

Click to download and view in:
DWG | DXF | PDF | PNG

Click to download and view in:
DWG | DXF | PDF | PNG

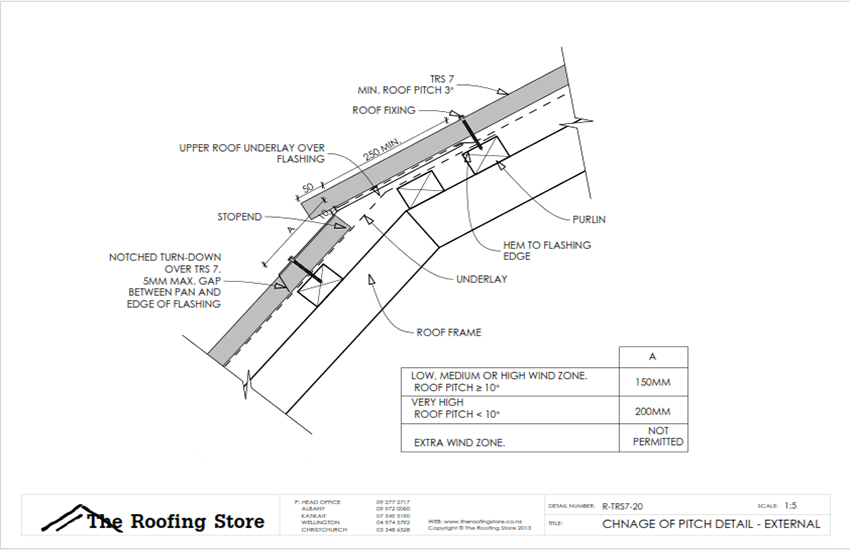

TRS 7 - Change of pitch
external detail


Click to download and view in:
DWG | DXF | PDF | PNG

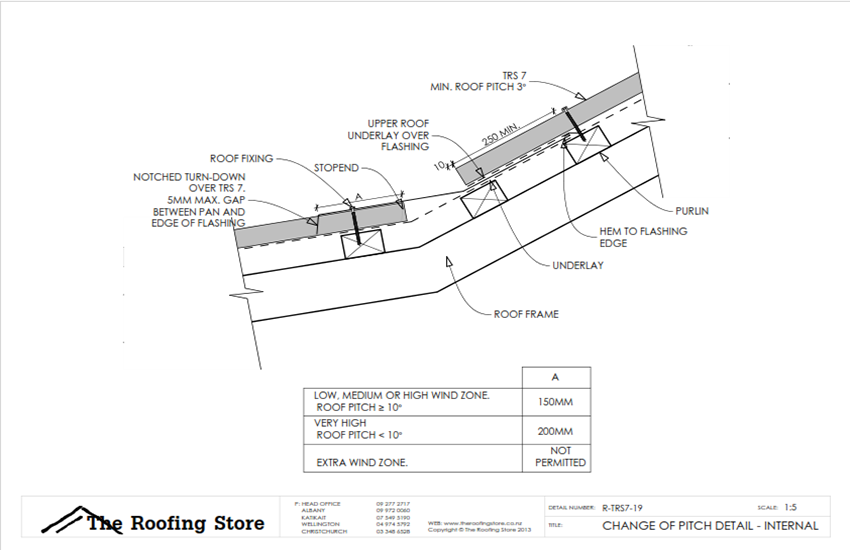

TRS 7 - Change of pitch
internal detail


Click to download and view in:
DWG | DXF | PDF | PNG

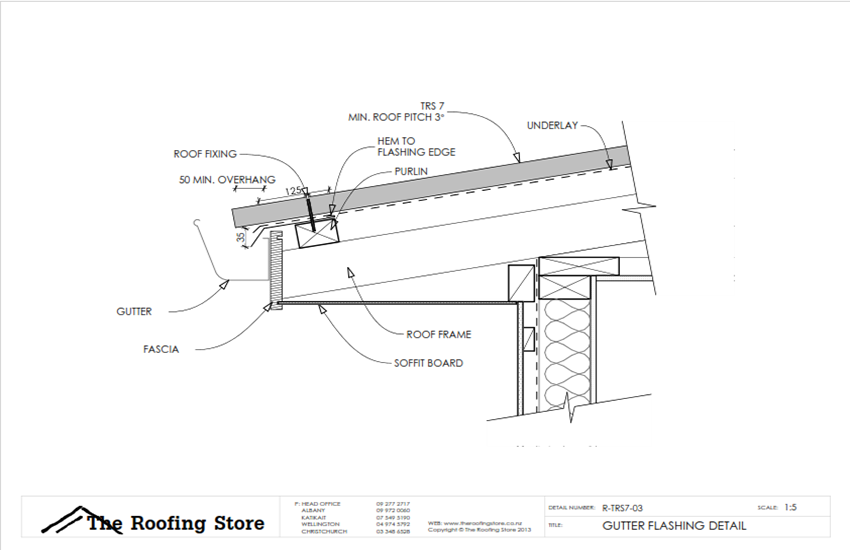

TRS 7 - Gutter flashing
detail


Click to download and view in:
DWG | DXF | PDF | PNG

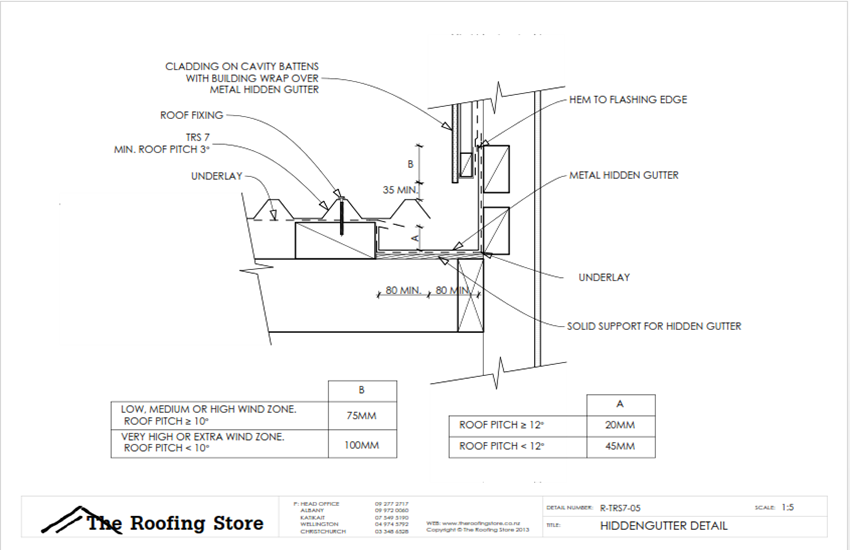

TRS 7 - Hidden gutter detail


Click to download and view in:
DWG | DXF | PDF | PNG

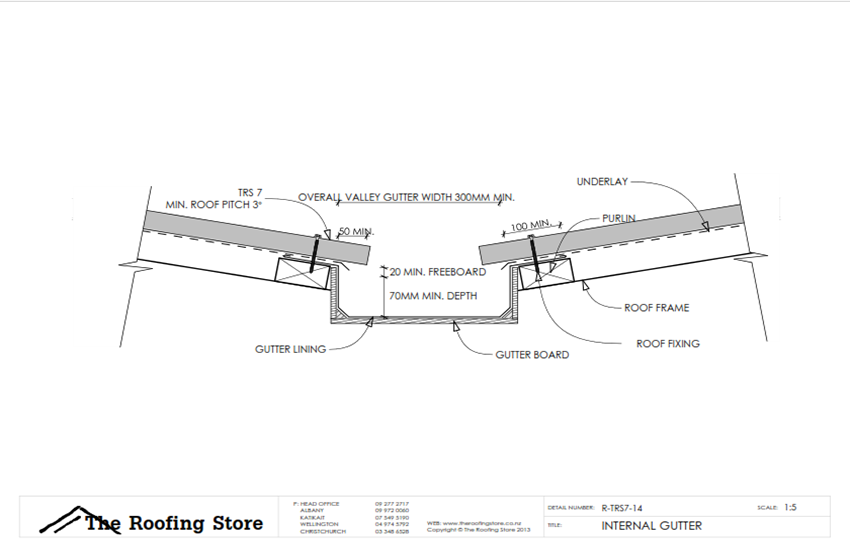

TRS 7 - Internal Gutter


Click to download and view in:
DWG | DXF | PDF | PNG

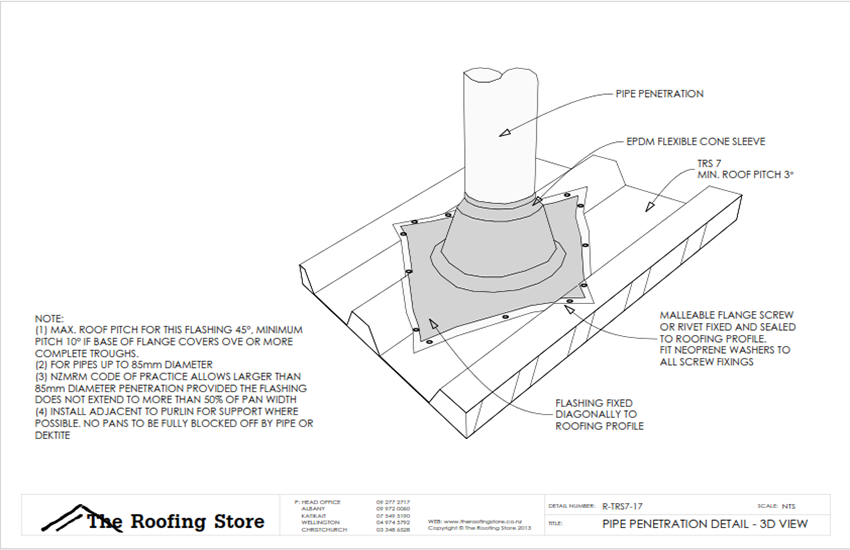

TRS 7 - Pipe Penetration Detail


Click to download and view in:
DWG | DXF | PDF | PNG

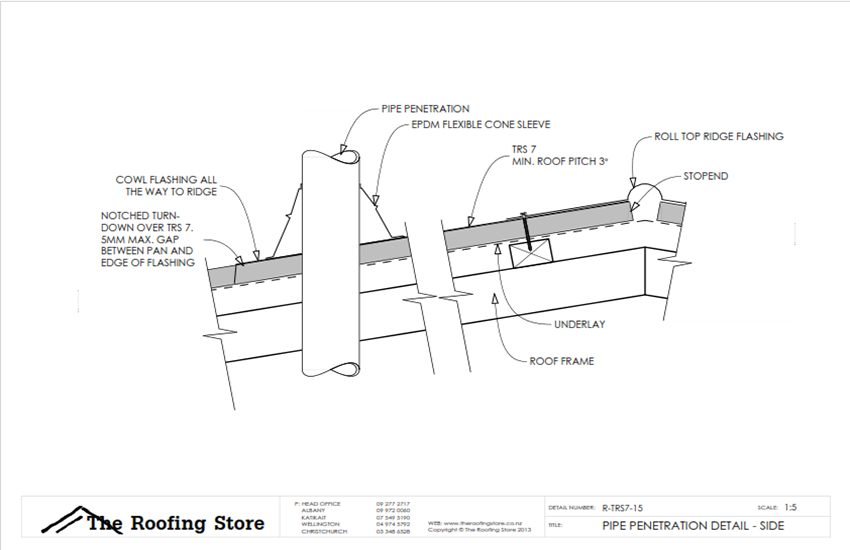

TRS 7 - Pipe Penetration
Side Detail


Click to download and view in:
DWG | DXF | PDF | PNG

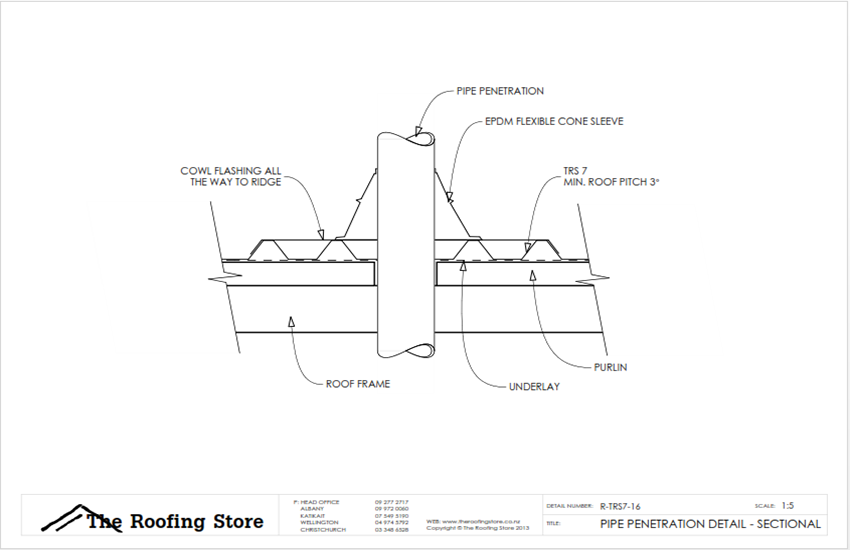

TRS 7 - Pipe Penetration
Detail Sectional


Click to download and view in:
DWG | DXF | PDF | PNG

TRS 7 - Top Ridge Roll
top detail


Click to download and view in:
DWG | DXF | PDF | PNG

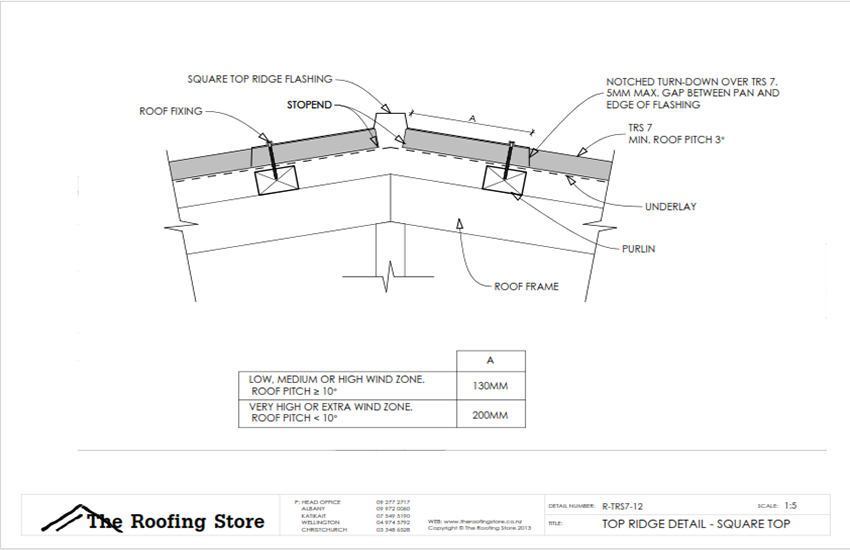

TRS 7 - Top Ridge square
top detail


Click to download and view in:
DWG | DXF | PDF | PNG

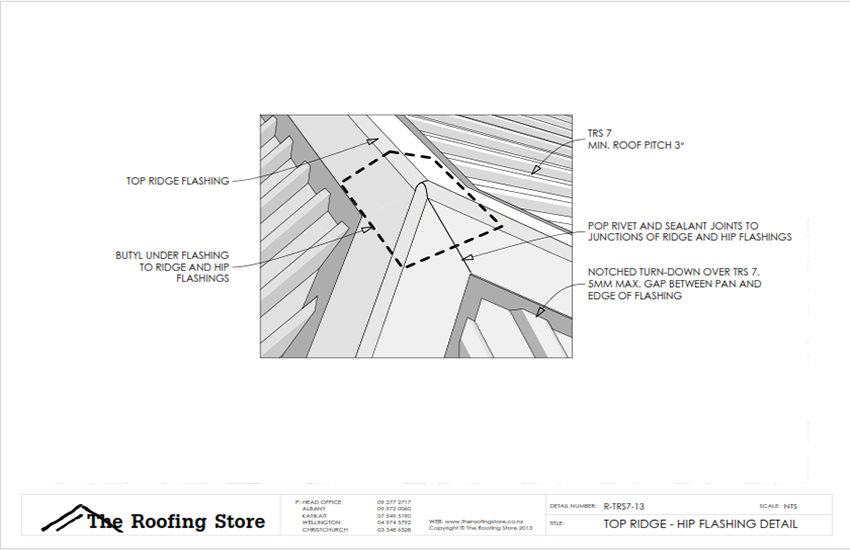

TRS 7 - Top ridge hip
flashing detail


Click to download and view in:
DWG | DXF | PDF | PNG

TRS 7 - Typical roof layout
exposed rafters


Click to download and view in:
DWG | DXF | PDF | PNG

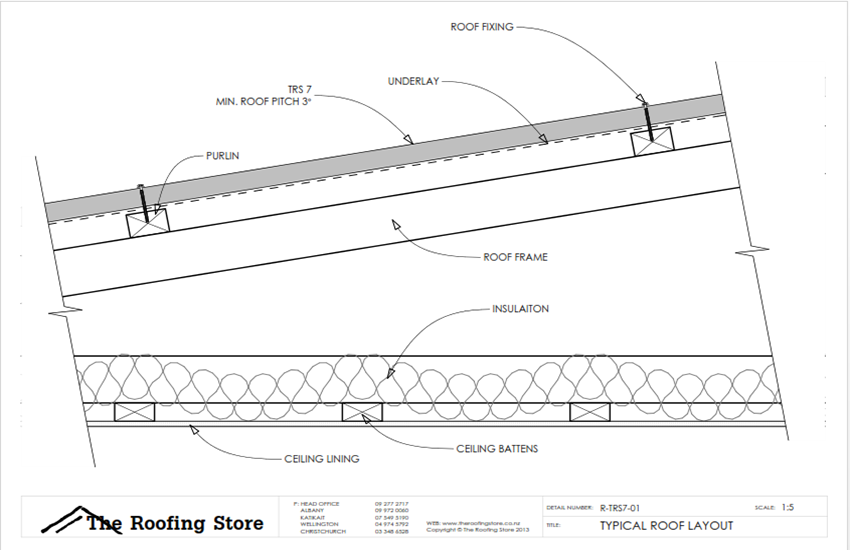

TRS 7 - Typical roof
layout


Click to download and view in:
DWG | DXF | PDF | PNG

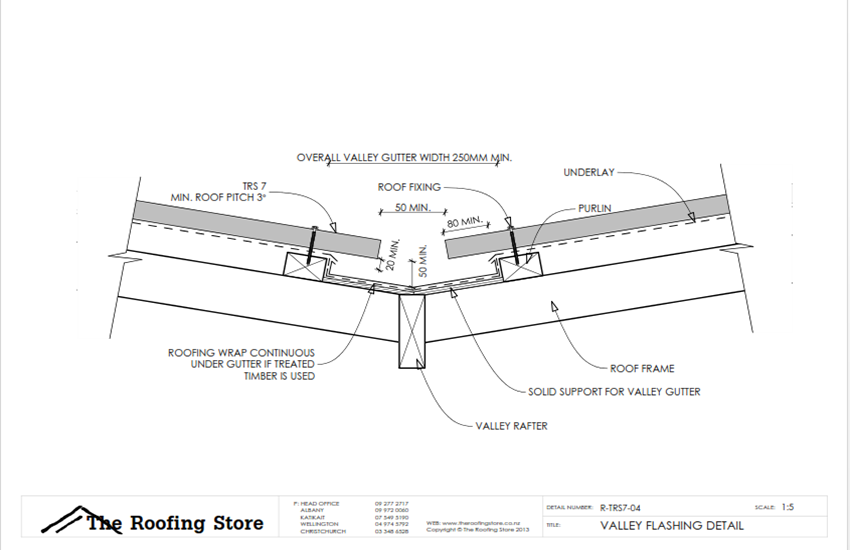

TRS 7 - Valley flashing
detail


Click to download and view in:
DWG | DXF | PDF | PNG
