TRS 9

Steel Roofing and Cladding Profile


TRS 9 -1.jpg

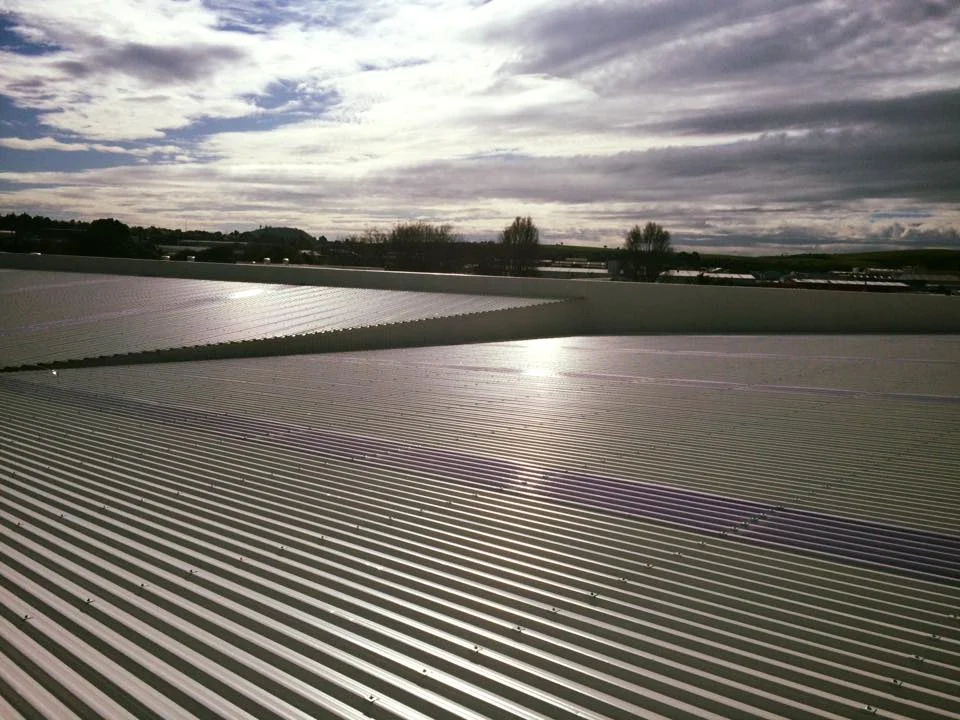

TRS 9 longrun steel roofing

TRS9 Longrun Steel Roofing - The Roofing Store.png



TRS 9 profile is designed for commercial and industrial roofing. The profile is suitable for low pitch roofing as well as curved roofing. Commercial and industrial roofing G550 grade steel with minimum 0.55 BMT gives more resilience to damage. Available in Duralume, Sandstone Grey, Gull Grey, and Titania White.

Specification at a glance

GENERAL

Minimum Roof Pitch: 3 Degree

Effective Cover: 910 mm

Max. Unsupported Overhang: Contact The Roofing Store

SPANS

End Span 0.55 BMT: 2300 mm

Internal Span 0.55 BMT: 3200 mm

TRS9 longrun roofing profile diagram and size specifications.png

Roof fixings

LOW/MEDIUM WIND ZONE

Timber: class 4 12 x 75mm with neo washer and embossed washer

Steeltite: 12 x 75mm with neo washer and embossed washer

HIGH WIND ZONE

Timber: class 4 14 x 75mm with neo washer and embossed washer, approved profile’s metal washer and EPDM washer

Steeltite: 12 x 75mm with neo washer and embossed washer, approved profile’s metal washer and EPDM washer

WALL CLADDING FIXINGS

Cladding fixing on 20mm

Timber Battens(Please ensure compatibility as some treatments may cause a reaction)

12 Gauge class 4 screws with neo washers, miss 2pans, miss 3 pans every second on ends

ROOF FIXINGS LENGTHS

Dark colour up to 8 metres: Solid fix

Light colour up to 12 metres: Solid fix

Sheets length excess above*: Oversize holes required for movement

*Contact The Roofing Store for further information on specific design

See below for TRS 9 residential and commercial product specification information and downloadable files.



TRS 9

Colour & finish options


TRS Red #f0163a.png

TRS 9 finish options




TRS 9 colour options

In Vitor+ and Vitor+ ZX



COlours * marked for 0.55 availability.




In Lux



Please note: All Lux is available in 0.55mm base metal thickness Grade G300 and is suitable for a wide range of architectural roofing, internal and external wall claddings, rainwater goods and general usage.

While all colours shown are as closely matched to the true colour as possible, they are not an exact match due to digital colour limitations. For a true colour match, please request a colour swatch from your local store.




TRS 9

Residential Specifications


TRS Red #f0163a.png

TRS 9 Residential Specification Detail - Downloadable Files
